12768a.jpg |    |  | | Description |

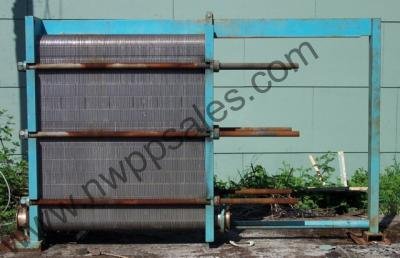

PlateHeat Exchanger; Sq Ft 2750; APV Equip Co;
Frame Size5; Gpm 600; Mill Number 94-0159; Model R860MarkIII; Psi 100; Series 2; Sq Ft 2750; Weight 9125 lbs; SO2 Water 600 GPM 95°-71.6° 7 Psi, Fresh Water Rate 600 GPM 68°-91.4° 7 Psi, Max Operating Pressure 100 Psi, Volume of Product 131.5 Gallons, Weight of Machine Dry 9125 Lbs, Weight of Machine Flooded 11,315 Lbs, Fittings: 6" Sch 10 316 SS Stub End W/150# Ans C.C. Lap Joint Flange, Drawing and Manual on File, Plate Size 22" Wide 66" High 352 Plates, Plates are 23 Gauge-316 SS Construction |
|
Phone: (360) 247-5151
|
|
;)
;)
